So im going to give you the quick version along with the details. There are a lot of guides online on how to connect an esp8266 to an arduino uno but theres too much confusion and not enough explanation.
Add Wifi To Arduino Uno Arduino Project Hub
The reason you will sometimes see instructions to connect rx rx tx tx between an esp8266 and arduino is they are just using the arduino for the a usb serial adapter chip to communicate directly from the serial monitor to the esp8266.
Wiring esp8266 to arduino uno. Accessing esp8266 from arduino uno code. This is written. Esp8266 gnd breadboard gnd.
Esp 12e esp8266 with arduino uno. Try it for free. Wire the esp8266 module the arduino uno and the breadboard as seen in the image.

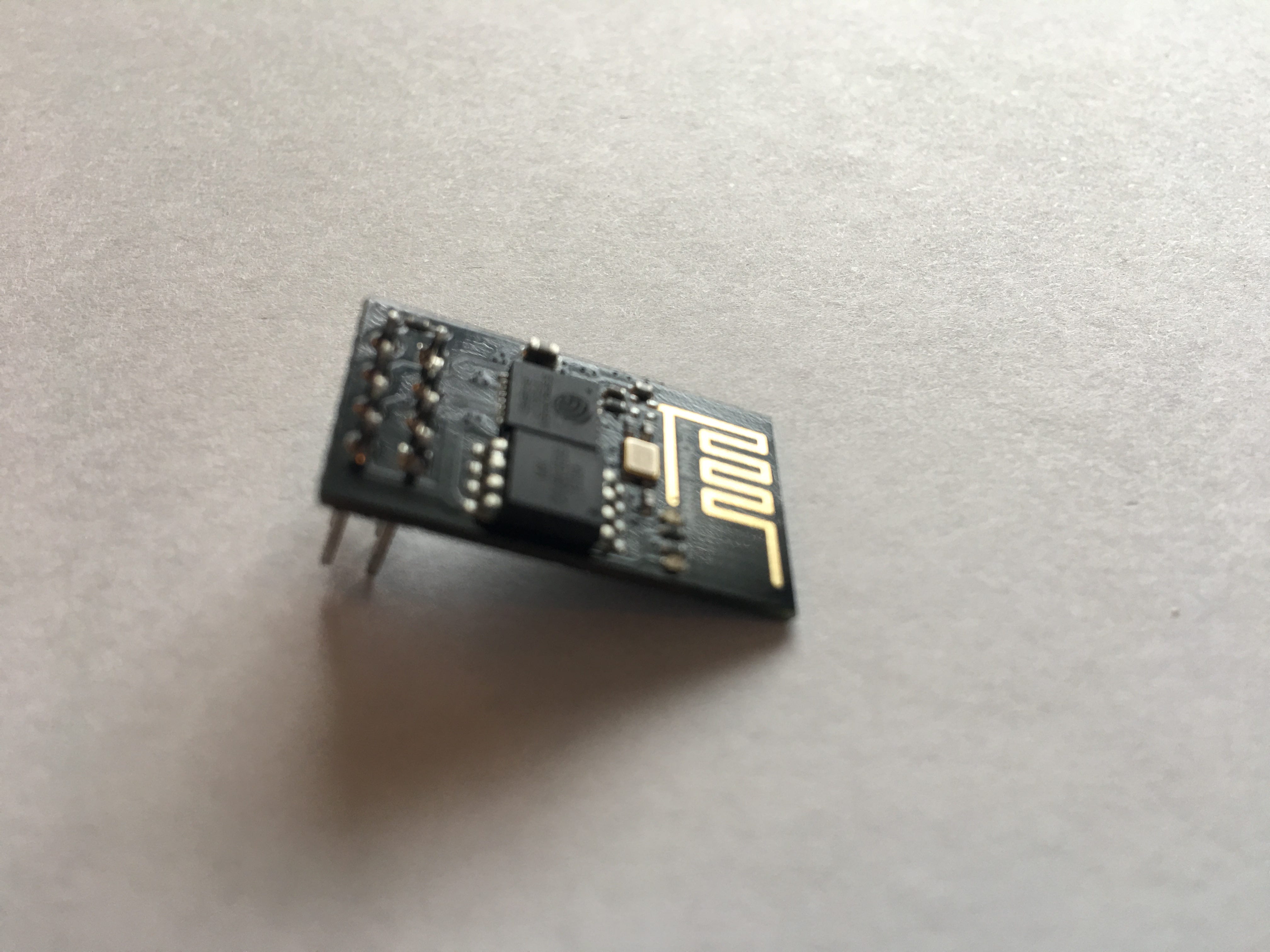

Esp8266 and arduino uno issues with wiringpower and at page 2. Updated as of february 1 2019. The esp8266 wifi module is a complete wifi network where you can easily connect as a serving wi fi adapter wireless internet access interface to any microcontroller based design on its simple connectivity through serial communication or uart interface.
Simple arduino uno esp8266 software serial integration. Esp8266 and arduino uno issues with. Connect your arduino to the internet by adding esp8266 wifi module.
Our goal was to create an esp8266 at command library based on the itead library that would work well on software serial on most esp8266 devices provided they have firmware that responds to at commands which is usually the manufacturer default. Trying to wire into the unos serial txrx will block you from connecting the ide to the uno since it works over the usb serial on the same pins. Drag and drop these components onto the canvas and instantly get a list of secondary parts wiring instructions and a test code for your circuit.
We are distributing this preliminary library for testing and would appreciate your. The primary components for this circuit are. Work in progress leave comments so we can improve it togetherthis tutorial is the first of three parts meant for people who want to connect their esp8266 through an arduino uno board.
Connecting the esp8266 to an arduino the steps you need to take are simple. More specifically i will be using the esp 12e version of thes. Connect the esp8266 via software serial to your arduino uno board using a logic converter as shown in the wiring figure attached.
Arduino uno r3 and esp8266. Arduino uno and arduino ide installed esp8266. Since you want the uno to communicate with the esp8266 rx tx tx rx is correct.

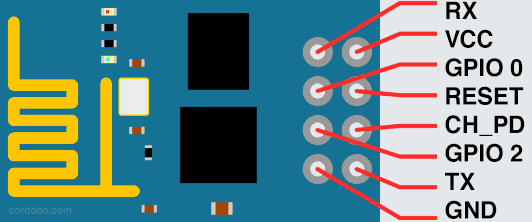

Esp8266 ch pd breadboard 33v. Esp8266 tx arduino uno tx. When complete the pins should be connected as follows esp8266 pin out is shown for reference.
Learn how to wire the wifi module to arduino uno in a few simple steps. Arduino forum using arduino networking protocols and devices esp8266 and arduino uno issues with wiringpower and at.
